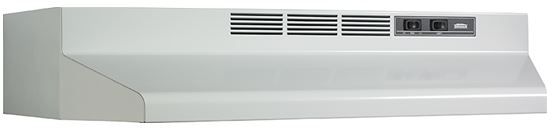

Broan® 24" Convertible Under The Cabinet Hood-White


Model #:

F402401

Model #: F402401
31145
Broan
$116.00

At a Glance

Product Dimensions 6"h x 24"w x 17.50"d

Broan® 24" Convertible Under The Cabinet Hood-White with 160 cfm and dishwasher safe aluminum grease filtersRead More

$116.00

What We Offer

Services

View Options

None Selected

Free Haul Away withPurchase of Installation!

Get to know this product.

Product Overview

Product Overview

The F40000 series provides installation flexibility with 4-way convertibility to fit virtually all applications. The hood is designed for under cabinet use and installs as 3-1/4 in. x 10 in. ducted opening with vertical or horizontal ducting; or 7 in. round vertical ducting or as non-ducted with air re-circulation. The hood features a fan designed for years of trouble free service, an easy to clean grease filter, a protective lamp lens that distributes light evenly over the cook-top and control switches for fan speed and light activation.

    Four-way convertible; installs ducted 3-1/4" x 10" (vertical and horizontal), 7" round (vertical) and non-ducted. Non-Ducted Filter sold separately - Model 41F

    160 CFM, 6.5 Sone (3-1/4" x 10" discharge) or 190 CFM (7" round discharge) performance – HVI 2100 Certified

    Dishwasher-safe aluminum grease filter

    A protective lamp lens distributes light evenly over the cook-top and accepts up to 75W bulb (bulb not included)

    Includes 3-1/4" x 10" damper/adapter and 7" round adapter

    BP87 dampers sold separately



Useful Documents
Specifications

General Specs

Width (in.)24
Height (in.)6
Duct Size (in.)3.25" x 10"
Depth (in.)17.50
ColorWhite
PositioningStationary
Color Finish NameWhite
Range Hood TypeWall Mounted
ENERGY STAR CertifiedNo
Appliance Fit Width (in.)24
Maximum CFM160
Voltage120
Amp2.5
Range Hood FeaturesDuctless Capable
Ventilation TypeConvertible (Both)

Dimensions

Max Height Above Cooktop:18

Display

Controls:Mechanical

General Features

Filter Type:1 Dishwasher Safe Aluminum Grease Filter

Other

Number of Lights:1
Settings:Variable Speed
Air Mover Type(s):Fan
Number of Air Movers:1
Sones (Noise Level) Rating:6.5
WarningProposition 65 Warning for California Residents
